Y-Ybar

[1]:

from optiland.analysis import YYbar
from optiland.samples.objectives import PetzvalLens

[2]:

lens = PetzvalLens()

[3]:

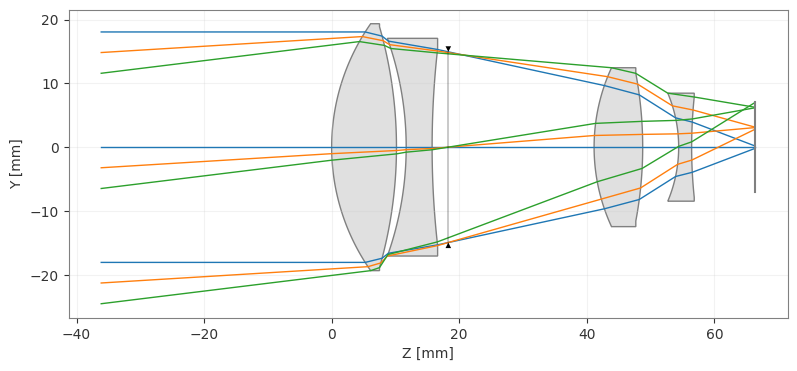

lens.draw()

[3]:

(<Figure size 1000x400 with 1 Axes>, <Axes: xlabel='Z [mm]', ylabel='Y [mm]'>)

../../_images/gallery_analysis_y_ybar_3_1.png

[4]:

yybar = YYbar(lens)
yybar.view()

[4]:

(<Figure size 700x550 with 1 Axes>,
 <Axes: title={'center': 'Y Y-bar Diagram (λ=0.588 µm)'}, xlabel='Chief Ray Height (mm)', ylabel='Marginal Ray Height (mm)'>)

../../_images/gallery_analysis_y_ybar_4_1.png
