Field Curvature

[1]:

from optiland.analysis import FieldCurvature
from optiland.samples.objectives import TessarLens

[2]:

lens = TessarLens()

[3]:

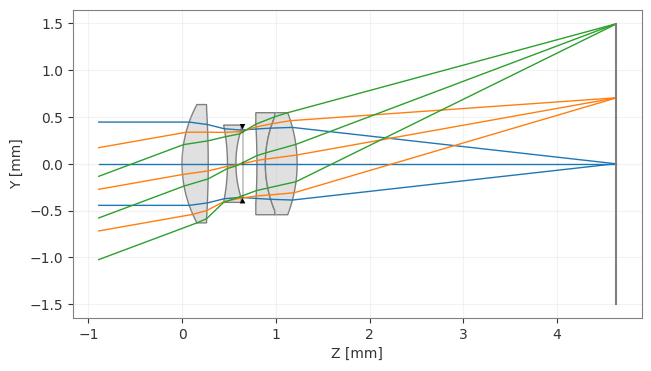

lens.draw()

[3]:

(<Figure size 1000x400 with 1 Axes>, <Axes: xlabel='Z [mm]', ylabel='Y [mm]'>)

../../_images/gallery_analysis_field_curvature_3_1.png

[4]:

field_curvature = FieldCurvature(lens)
field_curvature.view()

[4]:

(<Figure size 800x550 with 1 Axes>,
 <Axes: title={'center': 'Field Curvature'}, xlabel='Image Plane Delta (mm)', ylabel='Field'>)

../../_images/gallery_analysis_field_curvature_4_1.png
