Encircled Energy

[1]:

from optiland.analysis import EncircledEnergy
from optiland.samples.objectives import CookeTriplet

[2]:

lens = CookeTriplet()

[3]:

lens.draw()

[3]:

(<Figure size 1000x400 with 1 Axes>, <Axes: xlabel='Z [mm]', ylabel='Y [mm]'>)

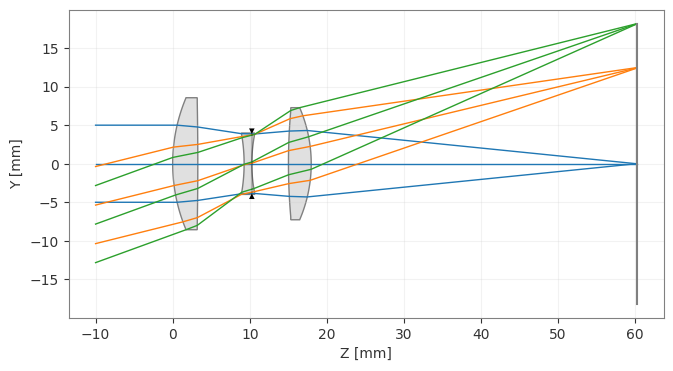

../../_images/gallery_analysis_encircled_energy_3_1.png

[4]:

encircled_energy = EncircledEnergy(lens)
encircled_energy.view()

[4]:

(<Figure size 700x450 with 1 Axes>,
 <Axes: title={'center': 'Wavelength: 0.5500 µm'}, xlabel='Radius (mm)', ylabel='Encircled Energy (-)'>)

../../_images/gallery_analysis_encircled_energy_4_1.png
