Spot Diagram

[1]:

from optiland.analysis import SpotDiagram
from optiland.samples.objectives import CookeTriplet

[2]:

lens = CookeTriplet()

[3]:

lens.draw()

[3]:

(<Figure size 1000x400 with 1 Axes>, <Axes: xlabel='Z [mm]', ylabel='Y [mm]'>)

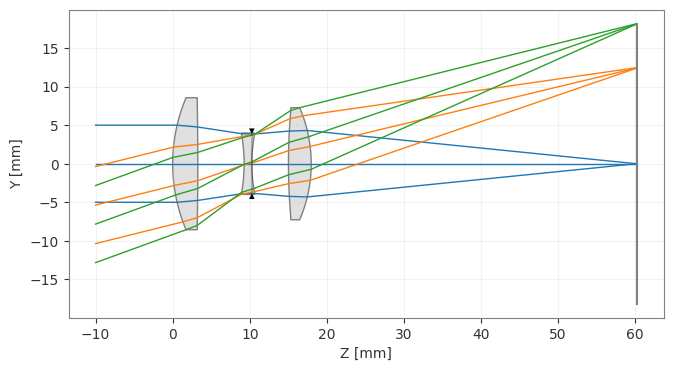

../../_images/gallery_analysis_spot_3_1.png

[4]:

spot = SpotDiagram(lens, fields=[(0, 1)])
spot.view()

[4]:

(<Figure size 1200x400 with 1 Axes>,
 [<Axes: title={'center': 'Hx: 0.000, Hy: 1.000'}, xlabel='X (mm)', ylabel='Y (mm)'>])

../../_images/gallery_analysis_spot_4_1.png

[5]:

spot = SpotDiagram(lens)
spot.view()

[5]:

(<Figure size 1200x400 with 3 Axes>,
 [<Axes: title={'center': 'Hx: 0.000, Hy: 0.000'}, xlabel='X (mm)', ylabel='Y (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 0.700'}, xlabel='X (mm)', ylabel='Y (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 1.000'}, xlabel='X (mm)', ylabel='Y (mm)'>])

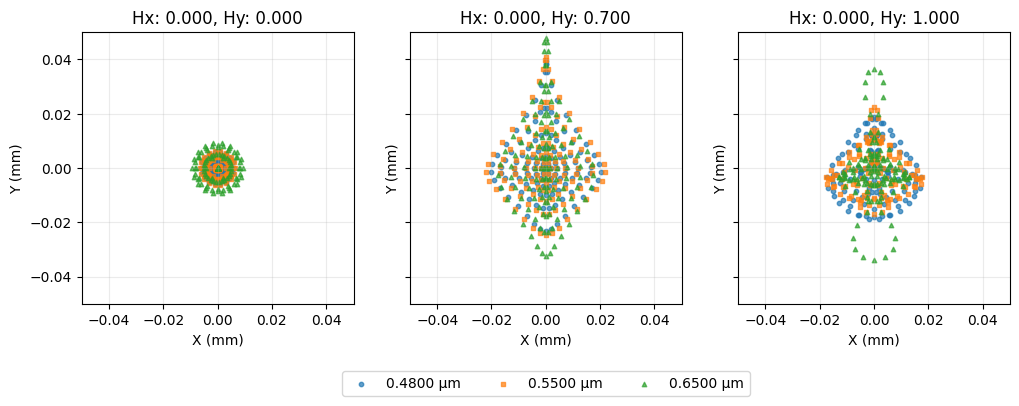

../../_images/gallery_analysis_spot_5_1.png
