Distortion

[1]:

from optiland.analysis import Distortion
from optiland.samples.objectives import PetzvalLens

[2]:

lens = PetzvalLens()

[3]:

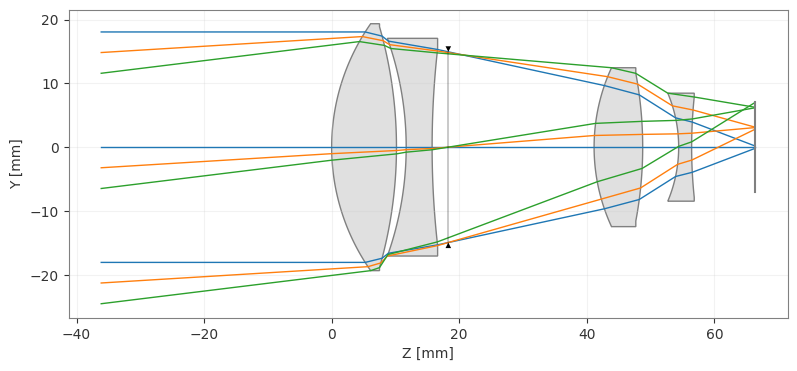

lens.draw()

[3]:

(<Figure size 1000x400 with 1 Axes>, <Axes: xlabel='Z [mm]', ylabel='Y [mm]'>)

../../_images/gallery_analysis_distortion_3_1.png

[4]:

distortion = Distortion(lens)
distortion.view()

[4]:

(<Figure size 700x550 with 1 Axes>,
 <Axes: xlabel='Distortion (%)', ylabel='Field'>)

../../_images/gallery_analysis_distortion_4_1.png
