Pickups
Pickups define relationships between the components of a lens. For instance, in a singlet lens, the radii of curvature can be constrained to be equal in magnitude but opposite in sign.
[1]:
import numpy as np
from optiland import optic, optimization
Define a starting lens:
[2]:
lens = optic.Optic()
# add surfaces
lens.surfaces.add(index=0, radius=np.inf, thickness=np.inf)
lens.surfaces.add(index=1, radius=50, thickness=3, material="SK16", is_stop=True)
lens.surfaces.add(index=2, radius=-50, thickness=30)
lens.surfaces.add(index=3)
# set aperture
lens.set_aperture(aperture_type="EPD", value=10)
# set fields
lens.fields.set_type(field_type="angle")
lens.fields.add(y=0)
# set wavelengths
lens.wavelengths.add(value=0.48)
lens.wavelengths.add(value=0.55, is_primary=True)
lens.wavelengths.add(value=0.65)
lens.draw()
Define pickups:
[ ]:
lens.pickups.add(
source_surface_idx=1,
attr_type="radius",
target_surface_idx=2,
scale=-1,
offset=0,
)
Note that pickups can also act on generic surface attributes using the string parameter ttr_type. When doing so, you can use [i] to stand in for the dynamic surface index that is resolved at runtime so the target does not accidentally overwrite the source attribute if you provide a hardcoded index.
As an example, if you wanted to pickup the geometry coefficients, we can provide [i] as the index for the generic path:
python lens.pickups.add( source_surface_idx=1, attr_type='surface_group.surfaces[i].geometry.coefficients', target_surface_idx=2 )
Note: We omit executing this here since our current lens geometry does not have coefficients.
Define optimization problem:
[4]:
problem = optimization.OptimizationProblem()
Add operands (targets for optimization):
[ ]:
"""
Add a wavefront error operand for all wavelengths.
Use Gaussian quadrature distribution for the rays (see distribution documentation for
more information).
"""
for wave in lens.wavelengths.get_wavelengths():
input_data = {
"optic": lens,
"Hx": 0,
"Hy": 0,
"num_rays": 3,
"wavelength": wave,
"distribution": "gaussian_quad",
}
problem.add_operand(
operand_type="OPD_difference",
target=0,
weight=1,
input_data=input_data,
)
Define variables - let first radius of curvature vary (the second surface will match this value, but with opposite sign):
[6]:
problem.add_variable(lens, "radius", surface_number=1)
Check initial merit function value and system properties:
[7]:
problem.info()
╒════╤════════════════════════╤═══════════════════╕
│ │ Merit Function Value │ Improvement (%) │
╞════╪════════════════════════╪═══════════════════╡
│ 0 │ 3879.67 │ 0 │
╘════╧════════════════════════╧═══════════════════╛
╒════╤════════════════╤══════════╤══════════╤═════════╤═════════╤════════════════════╕
│ │ Operand Type │ Target │ Weight │ Value │ Delta │ Contribution (%) │
╞════╪════════════════╪══════════╪══════════╪═════════╪═════════╪════════════════════╡
│ 0 │ OPD difference │ 0 │ 1 │ 40.0587 │ 40.0587 │ 41.3618 │
│ 1 │ OPD difference │ 0 │ 1 │ 36.0072 │ 36.0072 │ 33.4184 │
│ 2 │ OPD difference │ 0 │ 1 │ 31.2801 │ 31.2801 │ 25.2198 │
╘════╧════════════════╧══════════╧══════════╧═════════╧═════════╧════════════════════╛
╒════╤═════════════════╤═══════════╤═════════╤══════════════╤══════════════╕
│ │ Variable Type │ Surface │ Value │ Min. Bound │ Max. Bound │
╞════╪═════════════════╪═══════════╪═════════╪══════════════╪══════════════╡
│ 0 │ radius │ 1 │ 50 │ │ │
╘════╧═════════════════╧═══════════╧═════════╧══════════════╧══════════════╛
Define optimizer:
[8]:
optimizer = optimization.OptimizerGeneric(problem)
Run optimization:
[9]:
optimizer.optimize()
[9]:
message: CONVERGENCE: REL_REDUCTION_OF_F_<=_FACTR*EPSMCH
success: True
status: 0
fun: 7.40021876171174
x: [-6.131e-01]
nit: 9
jac: [ 2.496e+02]
nfev: 58
njev: 29
hess_inv: <1x1 LbfgsInvHessProduct with dtype=float64>
Print merit function value and system properties after optimization:
[10]:
problem.info()
╒════╤════════════════════════╤═══════════════════╕
│ │ Merit Function Value │ Improvement (%) │
╞════╪════════════════════════╪═══════════════════╡
│ 0 │ 7.40022 │ 99.8093 │
╘════╧════════════════════════╧═══════════════════╛
╒════╤════════════════╤══════════╤══════════╤══════════╤══════════╤════════════════════╕
│ │ Operand Type │ Target │ Weight │ Value │ Delta │ Contribution (%) │
╞════╪════════════════╪══════════╪══════════╪══════════╪══════════╪════════════════════╡
│ 0 │ OPD difference │ 0 │ 1 │ 1.81071 │ 1.81071 │ 44.3049 │
│ 1 │ OPD difference │ 0 │ 1 │ 0.899126 │ 0.899126 │ 10.9244 │
│ 2 │ OPD difference │ 0 │ 1 │ 1.8202 │ 1.8202 │ 44.7707 │
╘════╧════════════════╧══════════╧══════════╧══════════╧══════════╧════════════════════╛
╒════╤═════════════════╤═══════════╤═════════╤══════════════╤══════════════╕
│ │ Variable Type │ Surface │ Value │ Min. Bound │ Max. Bound │
╞════╪═════════════════╪═══════════╪═════════╪══════════════╪══════════════╡
│ 0 │ radius │ 1 │ 38.6889 │ │ │
╘════╧═════════════════╧═══════════╧═════════╧══════════════╧══════════════╛
Draw final lens:
[11]:

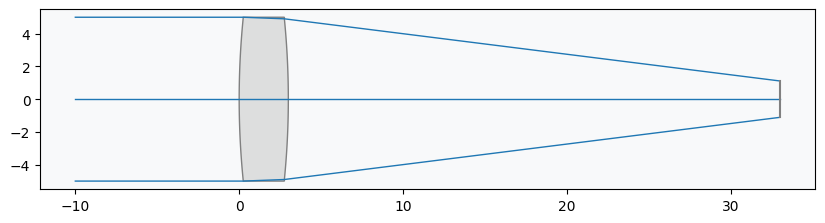

lens.draw(num_rays=5)
Confirm that the radii of curvature are equal and opposite:
[12]:
lens.info()
╒════╤═════════════════╤══════════╤═════════════╤════════════╤═════════╤═════════════════╕
│ │ Type │ Radius │ Thickness │ Material │ Conic │ Semi-aperture │
╞════╪═════════════════╪══════════╪═════════════╪════════════╪═════════╪═════════════════╡
│ 0 │ Planar │ inf │ inf │ Air │ 0 │ 5 │
│ 1 │ Stop - Standard │ 38.6889 │ 3 │ SK16 │ 0 │ 5 │
│ 2 │ Standard │ -38.6889 │ 30 │ Air │ 0 │ 4.85123 │
│ 3 │ Planar │ inf │ nan │ Air │ 0 │ 0.095248 │
╘════╧═════════════════╧══════════╧═════════════╧════════════╧═════════╧═════════════════╛
