CODE V (.seq) File Import Demo

This notebook demonstrates how to import a CODE V Sequential (.seq) file into Optiland using the load_codev_file function.

import os
from optiland.fileio import load_codev_file
from optiland import analysis

Loading a sample file

We will load a telescope objective lens from the Optiland test suite.

# Path to the sample CODE V file
file_path = '../../../tests/test_fileio/codev_files/telescope_objective.seq'  # located in test directory

# Load the lens
lens = load_codev_file(file_path)

# Display lens info
lens.info()

╒════╤═══════════════╤═══════════╤══════════╤═════════════╤════════════╤═════════╤═════════════════╕
│    │ Type          │ Comment   │   Radius │   Thickness │ Material   │   Conic │   Semi-aperture │
╞════╪═══════════════╪═══════════╪══════════╪═════════════╪════════════╪═════════╪═════════════════╡
│  0 │ Planar        │           │ inf      │    inf      │ Air        │       0 │         4.09009 │
│  1 │ Standard      │           │ -12.7172 │      0.8    │ N-PSK3     │       0 │         4.09009 │
│  2 │ Standard      │           │ -18.543  │      0.0148 │ Air        │       0 │         4.09076 │
│  3 │ Stop - Planar │           │ inf      │      0.015  │ Air        │       0 │         4.08898 │
│  4 │ Standard      │           │  15.758  │      1.6701 │ CAF2       │       0 │         4.09234 │
│  5 │ Standard      │           │ -13.039  │      0.0487 │ Air        │       0 │         4.22239 │
│  6 │ Standard      │           │ -12.831  │      0.8    │ S-LAL18    │       0 │         4.22099 │
│  7 │ Standard      │           │ -18.543  │      1.1799 │ Air        │       0 │         4.31862 │
│  8 │ Standard      │           │   9.8197 │      0.8    │ N-SK16     │       0 │         4.36723 │
│  9 │ Standard      │           │   8.001  │     44.3502 │ Air        │       0 │         4.25135 │
│ 10 │ Planar        │           │ inf      │    nan      │ Air        │       0 │         8.46329 │
╘════╧═══════════════╧═══════════╧══════════╧═════════════╧════════════╧═════════╧═════════════════╛

Visualizing the Lens

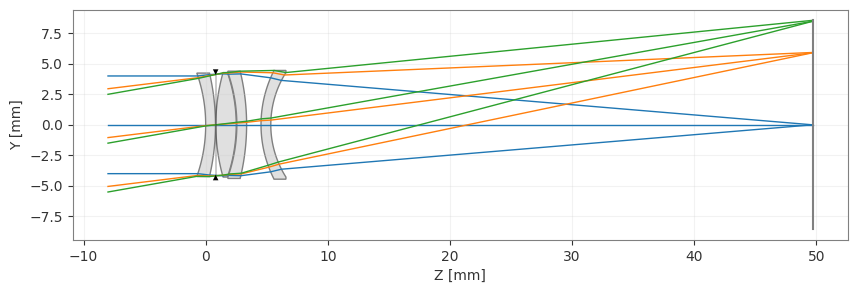

We can draw the lens layout to verify the import.

_ = lens.draw()

WARNING: No extinction coefficient data found for Daimon-20.yml. Assuming it is 0.

Analysis

Generate a spot diagram to assessment performance.

spot = analysis.SpotDiagram(lens)
_ = spot.view()
