FFT Vectorial PSF - 2D

This example demonstrates how to use the VectorialFFTPSF class to calculate the 2D PSF of an optical system.

Note: Vectorial PSF calculations are automatically performed when polarization is enabled in the optical system. This accounts for the vectorial nature of the electric field at the exit pupil.

[1]:

from optiland.psf import VectorialFFTPSF
from optiland.samples.objectives import CookeTriplet
from optiland.rays import PolarizationState

[2]:

lens = CookeTriplet()
unpolarized_state = PolarizationState(is_polarized=False)
lens.updater.set_polarization(unpolarized_state)  # Enable polarization to trigger vectorial PSF

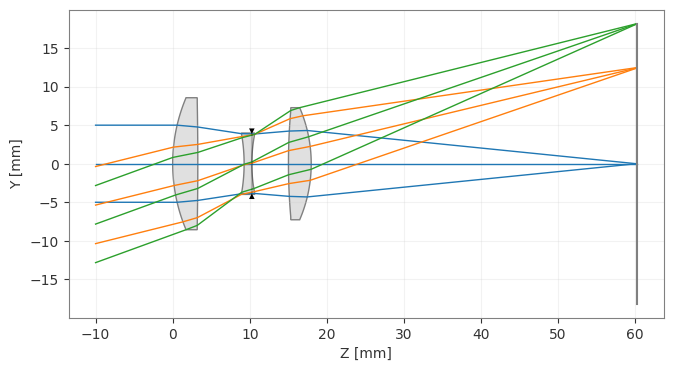

lens.draw()

[2]:

(<Figure size 1000x400 with 1 Axes>, <Axes: xlabel='Z [mm]', ylabel='Y [mm]'>)

../../_images/gallery_wavefront_fft_vectorial_psf_2d_2_1.png

[3]:

psf = VectorialFFTPSF(lens, field=(0, 1), wavelength=0.55)
_ = psf.view()

../../_images/gallery_wavefront_fft_vectorial_psf_2d_3_0.png
