Tolerancing - Sensitivity Study

from optiland.samples.objectives import CookeTriplet
from optiland.tolerancing import RangeSampler, SensitivityAnalysis, Tolerancing

optic = CookeTriplet()

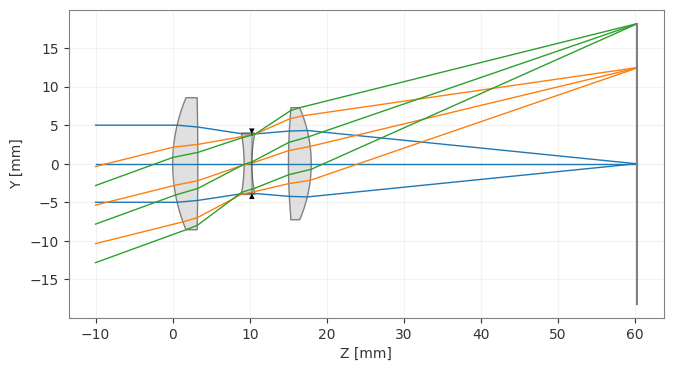

optic.draw()

(<Figure size 1000x400 with 1 Axes>, <Axes: xlabel='Z [mm]', ylabel='Y [mm]'>)

tolerancing = Tolerancing(optic)

# radius scan
sampler = RangeSampler(start=15, end=30, steps=128)
tolerancing.add_perturbation("radius", sampler, surface_number=1)

# tilt scan
sampler = RangeSampler(start=-0.05, end=0.05, steps=128)  # radians
tolerancing.add_perturbation("tilt", sampler, surface_number=1, axis="x")

# thickness scan
sampler = RangeSampler(start=2, end=5, steps=128)
tolerancing.add_perturbation("thickness", sampler, surface_number=1)

Define operands:

input_data = {"optic": optic}
tolerancing.add_operand("f2", input_data)

# surface_number=-1 means the last surface
input_data = {
    "optic": optic,
    "surface_number": -1,
    "Hx": 0,
    "Hy": 0.0,
    "wavelength": 0.55,
    "num_rays": 5,
}
tolerancing.add_operand("rms_spot_size", input_data, target=0)

input_data = {"optic": optic, "Hx": 0, "Hy": 1, "wavelength": 0.55, "num_rays": 5}
tolerancing.add_operand("OPD_difference", input_data)

sensitivity_analysis = SensitivityAnalysis(tolerancing)

sensitivity_analysis.run()

sensitivity_analysis.view()

(<Figure size 990x750 with 9 Axes>,
 [<Axes: ylabel='0: f2'>,
  <Axes: >,
  <Axes: >,
  <Axes: ylabel='1: rms spot size'>,
  <Axes: >,
  <Axes: >,
  <Axes: xlabel='Radius of Curvature, Surface 1', ylabel='2: OPD difference'>,
  <Axes: xlabel='Tilt X, Surface 1'>,
  <Axes: xlabel='Thickness, Surface 1'>])

Get pandas dataframe:

df = sensitivity_analysis.get_results()

df.head()

	perturbation_type	perturbation_value	0: f2	1: rms spot size	2: OPD difference
0	Radius of Curvature, Surface 1	15.000000	33.469945	2.701670	10.590084
1	Radius of Curvature, Surface 1	15.118110	33.743491	2.634001	10.438667
2	Radius of Curvature, Surface 1	15.236220	34.017200	2.567470	10.281144
3	Radius of Curvature, Surface 1	15.354331	34.291071	2.502048	10.118328
4	Radius of Curvature, Surface 1	15.472441	34.565104	2.437704	9.950932
