Tutorial 6c - Multilayer Stack

Base example with (TiO \(_2\) /SiO \(_2\) )*10 on BK7

import optiland.backend as be
from optiland.thin_film import ThinFilmStack, SpectralAnalyzer
from optiland.materials import Material, IdealMaterial

SiO2 = Material("SiO2", reference="Gao")
TiO2 = Material("TiO2", reference="Zhukovsky")
BK7 = Material("N-BK7", reference="SCHOTT")
air = IdealMaterial(n=1.0)

stack = ThinFilmStack(incident_material=air, substrate_material=BK7, reference_wl_um=0.6)
for _ in range(10):
    stack.add_layer_qwot(material=TiO2,qwot_thickness=1.0, name="TiO$_2$")
    stack.add_layer_qwot(material=SiO2, qwot_thickness=1.0, name="SiO$_2$")

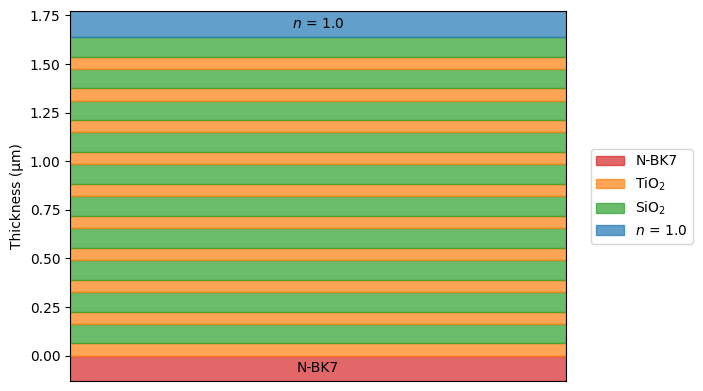

fig, ax = stack.plot_structure()

SpectralAnalyzer This is a plot helper to plot R/T/A versus wavelength and/or AOI. wavelength_view() (nm, μm, eV, cm⁻¹, Hz are available), angular_view(), map_view()

analyzer = SpectralAnalyzer(stack=stack)
wl = be.linspace(350, 1200, 1000) # Wavelength range in nm

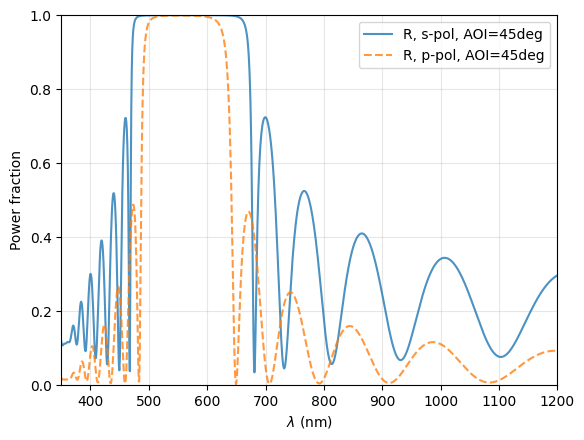

fig, ax = analyzer.wavelength_view(wl,
                                   wavelength_unit='nm',
                                   aoi=45, to_plot=["R"],
                                   polarization=["s", "p"])

wl = be.linspace(8000, 25000, 1000) # approximatly 0.4 to 1.25 um in wavenumber
angles = be.linspace(0, 80, 300)

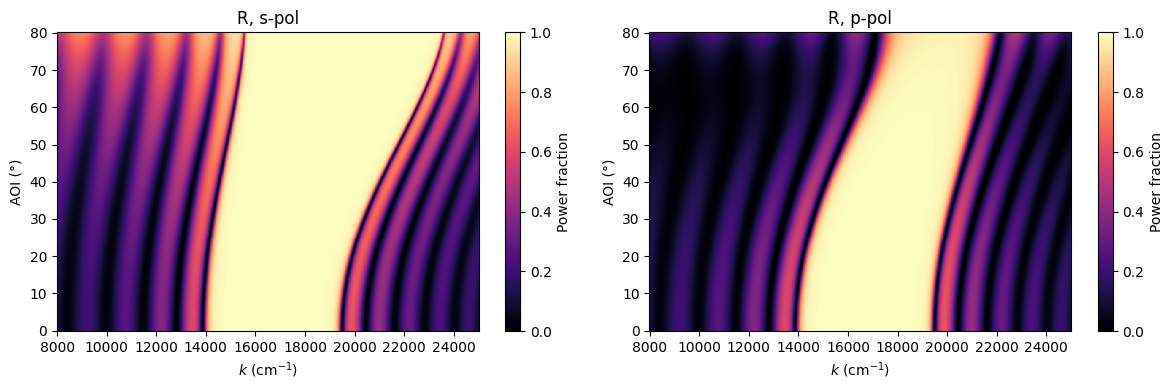

fig, ax = analyzer.map_view(wavelength_values=wl,
                            wavelength_unit='wavenumber',
                            aoi_values=angles, aoi_unit="deg",
                            to_plot=["R"],
                            polarization=["s", "p"],
                            colormap="magma")
