Ray Aberration Fan

[1]:

from optiland.analysis import RayFan
from optiland.samples.objectives import HeliarLens

[2]:

lens = HeliarLens()

[3]:

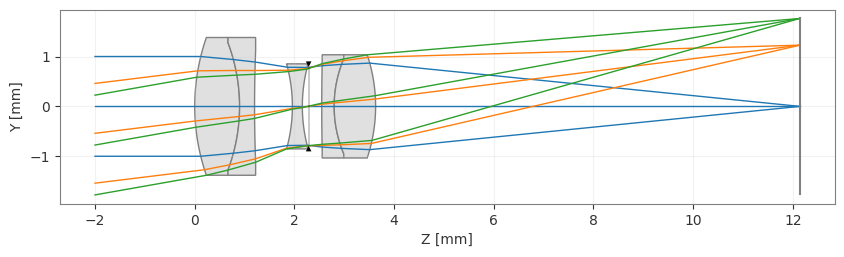

lens.draw()

[3]:

(<Figure size 1000x400 with 1 Axes>, <Axes: xlabel='Z [mm]', ylabel='Y [mm]'>)

../../_images/gallery_analysis_ray_fan_3_1.png

[4]:

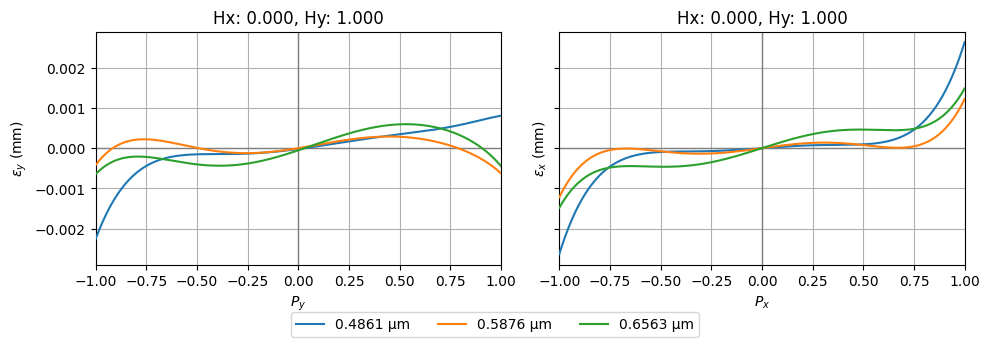

ray_fan = RayFan(lens, fields=[(0, 1)])
ray_fan.view()

[4]:

(<Figure size 1000x333 with 2 Axes>,
 [<Axes: title={'center': 'Hx: 0.000, Hy: 1.000'}, xlabel='$P_y$', ylabel='$\\epsilon_y$ (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 1.000'}, xlabel='$P_x$', ylabel='$\\epsilon_x$ (mm)'>])

../../_images/gallery_analysis_ray_fan_4_1.png

[5]:

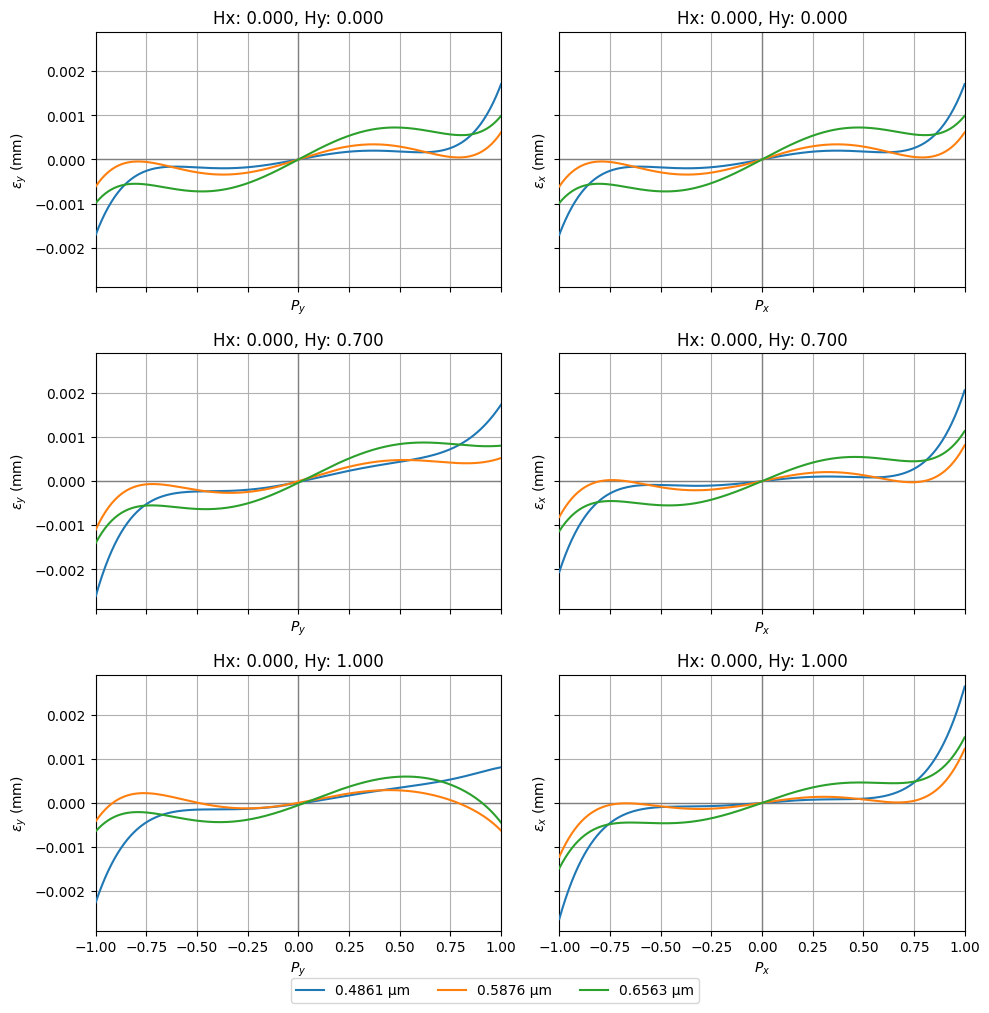

ray_fan = RayFan(lens)  # plots all fields by default
ray_fan.view()

[5]:

(<Figure size 1000x999 with 6 Axes>,
 [<Axes: title={'center': 'Hx: 0.000, Hy: 0.000'}, xlabel='$P_y$', ylabel='$\\epsilon_y$ (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 0.000'}, xlabel='$P_x$', ylabel='$\\epsilon_x$ (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 0.700'}, xlabel='$P_y$', ylabel='$\\epsilon_y$ (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 0.700'}, xlabel='$P_x$', ylabel='$\\epsilon_x$ (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 1.000'}, xlabel='$P_y$', ylabel='$\\epsilon_y$ (mm)'>,
  <Axes: title={'center': 'Hx: 0.000, Hy: 1.000'}, xlabel='$P_x$', ylabel='$\\epsilon_x$ (mm)'>])

../../_images/gallery_analysis_ray_fan_5_1.png
