Grid Distortion

[1]:

from optiland.analysis import GridDistortion
from optiland.samples.objectives import LensWithFieldCorrector

[2]:

lens = LensWithFieldCorrector()

[3]:

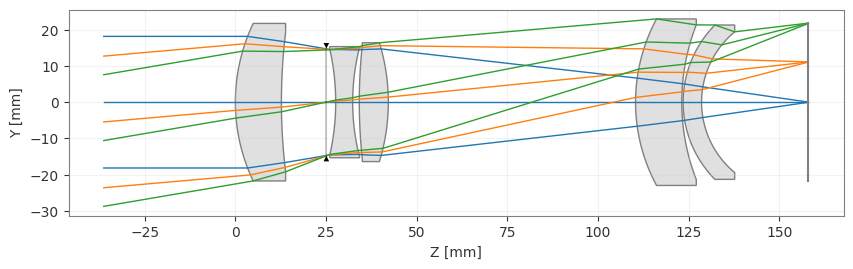

lens.draw()

[3]:

(<Figure size 1000x400 with 1 Axes>, <Axes: xlabel='Z [mm]', ylabel='Y [mm]'>)

../../_images/gallery_analysis_grid_distortion_3_1.png

[4]:

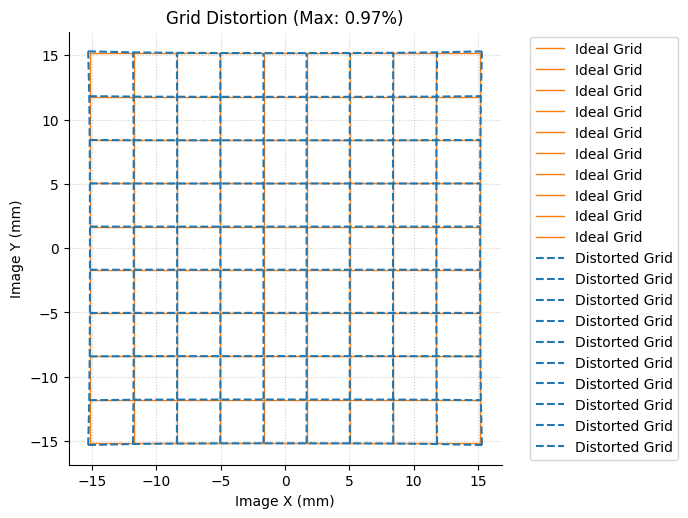

grid_distortion = GridDistortion(lens)
grid_distortion.view()

[4]:

(<Figure size 700x700 with 1 Axes>,
 <Axes: title={'center': 'Grid Distortion (Max: 0.97%)'}, xlabel='Image X (mm)', ylabel='Image Y (mm)'>)

../../_images/gallery_analysis_grid_distortion_4_1.png
