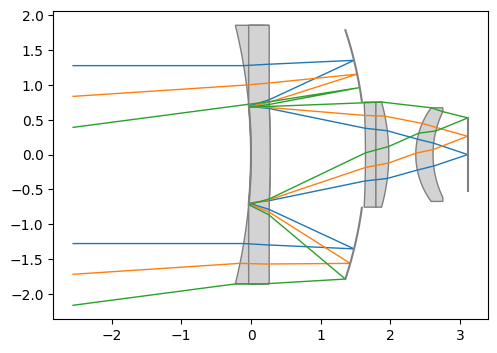

class StarlightScope(optic.Optic):
"""Starlight Scope Objective
Milton Laikin, Lens Design, 4th ed., CRC Press, 2007, p. 188
"""
def __init__(self):
super().__init__()
# add physical aperture on surface 3
aperture3 = physical_apertures.RadialAperture(r_max=np.inf, r_min=0.75)
self.surfaces.add(index=0, thickness=np.inf)
self.surfaces.add(index=1, thickness=0.275, radius=-7.7618, material="BK7")
self.surfaces.add(index=2, thickness=1.3662, radius=-16.8186)
self.surfaces.add(
index=3,
thickness=-1.3662,
radius=-5.6768,
material="mirror",
aperture=aperture3,
)
self.surfaces.add(index=4, thickness=-0.275, radius=-16.8186, material="BK7")
self.surfaces.add(
index=5,
thickness=0.275,
radius=-7.7618,
material="mirror",
is_stop=True,
)
self.surfaces.add(index=6, thickness=1.3662, radius=-16.8186)
self.surfaces.add(index=7, thickness=0.15, radius=-15.1741, material="SF2")
self.surfaces.add(index=8, thickness=0.1846, radius=np.inf, material="N-LAK7")
self.surfaces.add(index=9, thickness=0.3873, radius=-2.7866)
self.surfaces.add(index=10, thickness=0.2469, radius=1.1320, material="N-SK16")
self.surfaces.add(index=11, thickness=0.5, radius=1.4144)
self.surfaces.add(index=12)
self.set_aperture(aperture_type="imageFNO", value=1.57)
self.fields.set_type(field_type="angle")
self.fields.add(y=0)
self.fields.add(y=3.75)
self.fields.add(y=7.5)
self.wavelengths.add(value=0.48613270)
self.wavelengths.add(value=0.58756180, is_primary=True)
self.wavelengths.add(value=0.65627250)
