NURBS - Freeform telescope
Author: Matteo Taccola
Example of telescope definition based on NURBS freeform surfaces and first optimization
[1]:
import numpy as np
from optiland import optic, analysis, optimization
[2]:
from optiland.geometries import NurbsGeometry
from optiland.coordinate_system import CoordinateSystem
from optiland.materials import IdealMaterial, Material
from optiland.surfaces import Surface
First optical parameters derived from the optimization of an obstructed telescope
[3]:
radius1 = 99.7616
radius2 = 300.247
radius3 = -220.462
conic1 = 3.15161e-06
conic2 = -1.27041e-05
conic3 = -3.57947e-05
[4]:
field_max = 2
Distances between optical elements
[5]:
d12 = 100.0
d23 = 100.0
d3f = 110.0
Mirrors and focal plane tilts
[6]:
rx1 = np.radians(22.5)
drx2 = np.radians(22.5)
drx3 = np.radians(22.5)
rx4 = np.radians(-45)
Dimensions to perform fitting of conic surfaces with NURBS
[7]:
norm_x_1 = 10.
norm_y_1 = 10.
norm_x_2 = 30.
norm_y_2 = 30.
norm_x_3 = 30.
norm_y_3 = 30.
[8]:
nurbs_tel = optic.Optic()
[9]:
material_pre = IdealMaterial(n=1.0) # air
material_post = IdealMaterial(n=1.0)
[10]:
cs1 = CoordinateSystem(x=0, y=0, z=0, rx=rx1, ry=0, rz=0, reference_cs=None)
y2 = d12*np.sin(2.0*rx1)
z2 = -d12*np.cos(2.0*rx1)
rx2 = 2.0*rx1 + drx2
cs2 = CoordinateSystem(x=0, y=y2, z=z2, rx=rx2, ry=0, rz=0, reference_cs=None)
y3 = y2-d23*np.sin(2.0*(drx2+rx1))
z3 = z2+d23*np.cos(2.0*(drx2+rx1))
rx3 = 2.0*rx1 + 2.0*drx2 + drx3
cs3 = CoordinateSystem(x=0, y=y3, z=z3, rx=rx3, ry=0, rz=0, reference_cs=None)
y4 = y3 + d3f*np.sin(2.0*rx1)
z4 = z3 + d3f*np.cos(2.0*rx1)
[11]:
# if control points are passed radius and conic are ignored. The surface is built as NURBS from control points and weights
nurbs_geo1 = NurbsGeometry(
coordinate_system=cs1,
radius = radius1,
conic=conic1,
nurbs_norm_x = norm_x_1,
nurbs_norm_y = norm_y_1,
)
nurbs_geo1.fit_surface()
nurbs_geo2 = NurbsGeometry(
coordinate_system=cs2,
radius = radius2,
conic=conic2,
nurbs_norm_x = norm_x_2,
nurbs_norm_y = norm_y_2,
)
nurbs_geo2.fit_surface()
nurbs_geo3 = NurbsGeometry(
coordinate_system=cs3,
radius = radius3,
conic=conic3,
nurbs_norm_x = norm_x_3,
nurbs_norm_y = norm_y_3,
)
nurbs_geo3.fit_surface()
[12]:
new_surface1 = Surface(
geometry=nurbs_geo1,
material_pre=material_pre,
material_post=material_post,
is_stop = True
)
new_surface2 = Surface(
geometry=nurbs_geo2,
material_pre=material_pre,
material_post=material_post,
)
new_surface3 = Surface(
geometry=nurbs_geo3,
material_pre=material_pre,
material_post=material_post,
)
# Set interaction model to reflective for all surfaces
new_surface1.interaction_model.is_reflective = True
new_surface2.interaction_model.is_reflective = True
new_surface3.interaction_model.is_reflective = True
[13]:
# add surfaces
nurbs_tel.surfaces.add(index=0, radius=np.inf, thickness=np.inf)
nurbs_tel.surfaces.add(
index=1,
new_surface=new_surface1,
)
nurbs_tel.surfaces.add(
index=2,
new_surface=new_surface2,
)
nurbs_tel.surfaces.add(
index=3,
new_surface=new_surface3,
)
nurbs_tel.surfaces.add(index=4, y=y4, z=z4, rx=rx4)
[14]:
nurbs_tel.set_aperture(aperture_type='imageFNO', value=5)
[15]:
# add field
field_max = 2.
nurbs_tel.fields.set_type(field_type="angle")
nurbs_tel.fields.add(y=0)
nurbs_tel.fields.add(y=field_max)
nurbs_tel.fields.add(x=-field_max, y=0)
nurbs_tel.fields.add(x=field_max, y=0)
# add wavelength
wave = 0.55
nurbs_tel.wavelengths.add(value=wave, is_primary=True)
[16]:

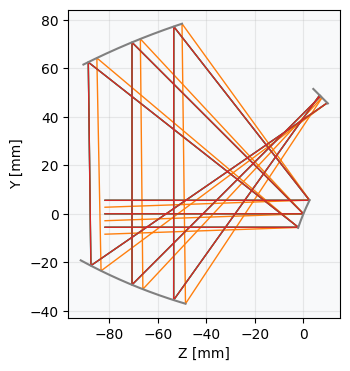

_ = nurbs_tel.draw()
[17]:

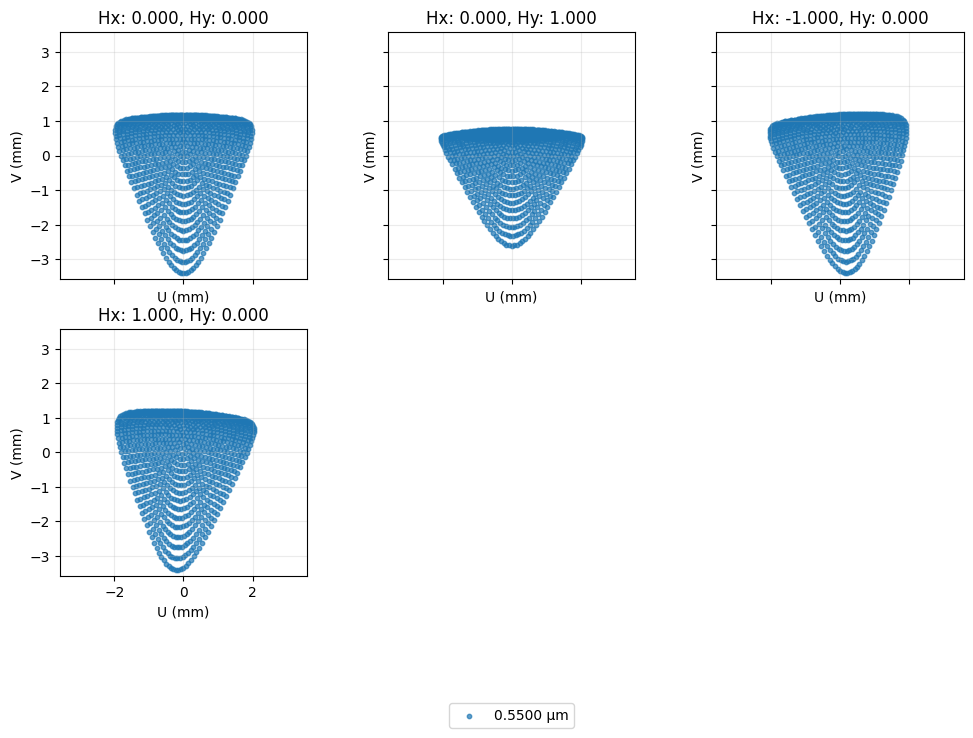

spot = analysis.SpotDiagram(nurbs_tel,num_rings=18)
_ = spot.view()
Telescope has severe aberrations due to tilts of the optical elements
[18]:
n_control_points_u = nurbs_geo1.P_size_u
n_control_points_v = nurbs_geo1.P_size_v
First optimization trial. The variables are the positions and weigths of the control points and position/tilt of the focal plane
[19]:
problem = optimization.OptimizationProblem()
for field in nurbs_tel.fields.get_field_coords():
input_data = {
"optic": nurbs_tel,
"surface_number": -1,
"Hx": field[0],
"Hy": field[1],
"num_rays": 16,
"wavelength": wave,
"distribution": "uniform",
}
problem.add_operand(
operand_type="rms_spot_size",
target=0,
weight=1,
input_data=input_data,
)
#variables are the coordinates and weights of the control points
for i in range(3):
for j in range(n_control_points_u):
for k in range(n_control_points_v):
problem.add_variable(nurbs_tel, "nurbs_control_point", surface_number=1, coeff_index = [i,j,k], min_val=-100, max_val=100)
problem.add_variable(nurbs_tel, "nurbs_control_point", surface_number=2, coeff_index = [i,j,k], min_val=-100, max_val=100)
problem.add_variable(nurbs_tel, "nurbs_control_point", surface_number=3, coeff_index = [i,j,k], min_val=-100, max_val=100)
for j in range(n_control_points_u):
for k in range(n_control_points_v):
problem.add_variable(nurbs_tel, "nurbs_weight", surface_number=1, coeff_index = [j,k], min_val=0, max_val=10)
problem.add_variable(nurbs_tel, "nurbs_weight", surface_number=2, coeff_index = [j,k], min_val=0, max_val=10)
problem.add_variable(nurbs_tel, "nurbs_weight", surface_number=3, coeff_index = [j,k], min_val=0, max_val=10)
problem.add_variable(
nurbs_tel,
"decenter",
axis="y",
surface_number=4,
min_val=y4-5.,
max_val=y4+5.,
)
problem.add_variable(
nurbs_tel,
"decenter",
axis="z",
surface_number=4,
min_val=z4-5.,
max_val=z4+5.,
)
# tilts
problem.add_variable(
nurbs_tel,
"tilt",
axis="x",
surface_number=4,
min_val=rx4-np.radians(5.0),
max_val=rx4+np.radians(5.0),
)
[20]:
problem.info()
╒════╤════════════════════════╤═══════════════════╕
